MCP Gateway Configuration - Unla (MCP Gateway)

Configuration files support using ${VAR:default} syntax for environment variable injection. If environment variables are not set, default values will be used. A common practice is to inject through different .env, .env.development, .env.prod files, though you can also directly modify the configuration to hardcode a value.

Basic Configuration

port: ${MCP_GATEWAY_PORT:5235}                      # Service listening port
pid: "${MCP_GATEWAY_PID:/var/run/mcp-gateway.pid}"  # PID file path

The PID here should be consistent with the PIDs mentioned below, used for service management and hot reload functionality.

Storage Configuration

The storage configuration module is mainly used to store gateway proxy configuration information. Currently supports two storage methods:

db storage

Store in database, each configuration is a record, supports SQLite3, PostgreSQL, MySQL

api storage

Store configurations through API endpoints, allowing for external configuration management systems

Configuration Example

storage:
  type: "${GATEWAY_STORAGE_TYPE:db}"                    # Storage type: db, api

  # Database configuration (used when type is 'db')
  database:
    type: "${GATEWAY_DB_TYPE:sqlite}"                   # Database type (sqlite, postgres, mysql)
    host: "${GATEWAY_DB_HOST:localhost}"                # Database host address
    port: ${GATEWAY_DB_PORT:5432}                       # Database port
    user: "${GATEWAY_DB_USER:postgres}"                 # Database username
    password: "${GATEWAY_DB_PASSWORD:example}"          # Database password
    dbname: "${GATEWAY_DB_NAME:./data/mcp-gateway.db}"  # Database name or file path
    sslmode: "${GATEWAY_DB_SSL_MODE:disable}"           # SSL mode for database connection

  # API configuration (used when type is 'api')
  api:
    url: "${GATEWAY_STORAGE_API_URL:}"                  # API endpoint URL
    configJSONPath: "${GATEWAY_STORAGE_API_CONFIG_JSON_PATH:}"  # JSON path for config in API response
    timeout: "${GATEWAY_STORAGE_API_TIMEOUT:30s}"       # Request timeout

Notification Configuration

The notification configuration module is mainly used to let mcp-gateway detect updates and perform hot reloads without restarting the service when configuration updates occur.

Supported Notification Methods

signal

Notify by sending operating system signals, similar to kill -SIGHUP <pid> or nginx -s reload

api

Notify by calling an API, mcp-gateway will listen on an independent port

redis

Notify through redis publish/subscribe functionality, suitable for single machine or cluster deployment

composite

Composite notification, combining multiple methods, signal and api are always enabled by default

Notification Role Description

sender

Responsible for sending notifications, apiserver can only use this mode

receiver

Responsible for receiving notifications, standalone mcp-gateway is recommended to use only this mode

both

Both sender and receiver, cluster deployed mcp-gateway can use this approach

Configuration Example

notifier:
  role: "${NOTIFIER_ROLE:receiver}" # Role: 'sender' or 'receiver'
  type: "${NOTIFIER_TYPE:signal}"   # Type: 'signal', 'api', 'redis' or 'composite'

  # Signal configuration (used when type is 'signal')
  signal:
    signal: "${NOTIFIER_SIGNAL:SIGHUP}"                     # Signal to send
    pid: "${NOTIFIER_SIGNAL_PID:/var/run/mcp-gateway.pid}"  # PID file path

  # API configuration (used when type is 'api')
  api:
    port: ${NOTIFIER_API_PORT:5235}                                         # API port
    target_url: "${NOTIFIER_API_TARGET_URL:http://localhost:5235/_reload}"  # Reload endpoint

  # Redis configuration (used when type is 'redis')
  redis:
    addr: "${NOTIFIER_REDIS_ADDR:localhost:6379}"                               # Redis address
    password: "${NOTIFIER_REDIS_PASSWORD:UseStrongPasswordIsAGoodPractice}"     # Redis password
    db: ${NOTIFIER_REDIS_DB:0}                                                  # Redis database number
    topic: "${NOTIFIER_REDIS_TOPIC:mcp-gateway:reload}"                         # Redis publish/subscribe topic

Session Storage Configuration

Session storage configuration is used to store session information in MCP. Different storage methods can be chosen based on different deployment scenarios:

memory storage

Memory storage, suitable for single machine deployment (note: restart will lose session information)

redis storage

Redis storage, suitable for single machine or cluster deployment, supports persistence

Configuration Example

session:
  type: "${SESSION_STORAGE_TYPE:memory}"                    # Storage type: memory, redis
  redis:
    addr: "${SESSION_REDIS_ADDR:localhost:6379}"            # Redis address
    password: "${SESSION_REDIS_PASSWORD:}"                  # Redis password
    db: ${SESSION_REDIS_DB:0}                               # Redis database number
    topic: "${SESSION_REDIS_TOPIC:mcp-gateway:session}"     # Redis publish/subscribe topic

When using memory storage, service restart will cause all session information to be lost. Redis storage is recommended for production environments.

Forward Headers Configuration

The forward headers configuration allows the MCP Gateway to forward HTTP headers from client requests to downstream services. This feature is useful for authentication, request tracing, and custom header propagation.

Forward headers functionality is disabled by default for backward compatibility. Enable it by setting enabled: true in the configuration.

Features

Header Filtering

Control which headers are forwarded using allow/ignore lists with case-insensitive matching

Client Headers

Forward headers from client requests (tools/list and tools/call) to downstream services

Argument Headers

Support forwarding headers passed as tool arguments via configurable parameter names

Override Control

Choose whether to override existing headers or add to them

Configuration Options

forward:
  enabled: ${FORWARD_ENABLED:false}                                     # Enable forward headers (default: false)

  mcp_arg:
    key_for_header: "${FORWARD_MCP_ARG_KEY_FOR_HEADER:__forwardHeaders}" # Parameter name for tool arguments

  header:
    allow_headers: "${FORWARD_ALLOW_HEADERS:}"                          # Comma-separated list of allowed headers (takes priority)
    ignore_headers: "${FORWARD_IGNORE_HEADERS:Accept, Accept-Encoding, Accept-Language, Host, Cookie, Connection, User-Agent, Content-Length, Content-Type}" # Headers to ignore
    case_insensitive: ${FORWARD_HEADER_CASE_INSENSITIVE:true}           # Case insensitive header matching
    override_existing: ${FORWARD_HEADER_OVERRIDE_EXISTING:false}        # Override existing headers instead of adding

Header Filtering Logic

The filtering logic follows a priority-based approach:

Priority Check

If allow_headers is configured (non-empty), it takes priority and ignore_headers is completely ignored

Allow List Mode

When allow_headers is set, only headers in this list are forwarded, all others are ignored

Ignore List Mode

When allow_headers is empty, headers in ignore_headers list are filtered out, others are forwarded

Case Sensitivity

Header matching respects the case_insensitive setting for both allow and ignore lists

Usage Examples

Example 1: Allow Only Specific Headers

forward:
  enabled: true
  header:
    allow_headers: "Authorization, X-API-Key, X-Request-ID"
    ignore_headers: "Host, Cookie"  # This will be ignored
    case_insensitive: true

Result: Only Authorization, X-API-Key, and X-Request-ID headers are forwarded.

Example 2: Block Specific Headers

forward:
  enabled: true
  header:
    allow_headers: ""  # Empty - use ignore list instead
    ignore_headers: "Accept, Host, Cookie, User-Agent"
    case_insensitive: true

Result: All headers except Accept, Host, Cookie, and User-Agent are forwarded.

Example 3: Tool Argument Headers

forward:
  enabled: true
  mcp_arg:
    key_for_header: "custom_headers"
  header:
    override_existing: true

Tools can now pass headers via the custom_headers argument:

{
  "name": "api_call",
  "arguments": {
    "url": "https://api.example.com/data",
    "custom_headers": {
      "Authorization": "Bearer token123",
      "X-Custom-Header": "value"
    }
  }
}

Environment Variables

All forward headers settings can be configured via environment variables:

# Enable the feature
FORWARD_ENABLED=true

# Configure header forwarding behavior
FORWARD_MCP_ARG_KEY_FOR_HEADER=__forwardHeaders
FORWARD_ALLOW_HEADERS="Authorization, X-API-Key"
FORWARD_IGNORE_HEADERS="Accept, Host, Cookie"
FORWARD_HEADER_CASE_INSENSITIVE=true
FORWARD_HEADER_OVERRIDE_EXISTING=false

When enabling forward headers in production, carefully review which headers should be forwarded to avoid security risks such as exposing sensitive authentication tokens or cookies.

Tracing (OpenTelemetry → Jaeger)

MCP Gateway supports distributed tracing via OpenTelemetry and exports to Jaeger. This is optional and disabled by default.

What You Get

Inbound HTTP requests are traced via Gin instrumentation (health check is excluded)
Downstream HTTP calls propagate trace context automatically
Optional capture of downstream request fields/body and error previews for faster debugging

Configuration

tracing:
  enabled: ${TRACING_ENABLED:false}
  service_name: "${TRACING_SERVICE_NAME:mcp-gateway}"
  endpoint: "${TRACING_ENDPOINT:localhost:4317}"   # Jaeger OTLP collector: gRPC(4317) or HTTP(4318)
  protocol: "${TRACING_PROTOCOL:grpc}"             # grpc or http
  insecure: ${TRACING_INSECURE:true}
  sampler_rate: ${TRACING_SAMPLER_RATE:0.1}         # 0.0 ~ 1.0
  environment: "${TRACING_ENV:dev}"
  headers: {}                                       # optional exporter headers
  capture:
    downstream_error:
      enabled: ${TRACING_ERR_BODY_ENABLED:false}
      max_body_length: ${TRACING_ERR_BODY_MAX_LEN:256}
    # GLOBAL capture settings — use with care to avoid leaking secrets.
    downstream_request:
      enabled: ${TRACING_REQ_ARGS_ENABLED:false}
      body_enabled: ${TRACING_REQ_BODY_ENABLED:false}
      body_max_length: ${TRACING_REQ_BODY_MAX_LEN:256}
      max_field_length: ${TRACING_REQ_ARG_MAX_LEN:256}
      include_fields: "${TRACING_INCLUDE_FIELDS:}"   # CSV or JSON map of key=template

Environment Variables

# Enable tracing and set service metadata
TRACING_ENABLED=true
TRACING_SERVICE_NAME=mcp-gateway
TRACING_ENV=dev

# Exporter options (choose one protocol)
TRACING_PROTOCOL=grpc
TRACING_ENDPOINT=localhost:4317   # for gRPC (OTLP)
# OR
# TRACING_PROTOCOL=http
# TRACING_ENDPOINT=http://localhost:4318  # for HTTP (OTLP)
TRACING_INSECURE=true
TRACING_SAMPLER_RATE=1.0          # 1.0 for dev; lower in prod

# Optional capture controls (use cautiously in prod)
TRACING_ERR_BODY_ENABLED=true
TRACING_ERR_BODY_MAX_LEN=256
TRACING_REQ_ARGS_ENABLED=false
TRACING_INCLUDE_FIELDS="username={{.Args.username}},email={{.Args.email}}"
TRACING_REQ_ARG_MAX_LEN=256
TRACING_REQ_BODY_ENABLED=false
TRACING_REQ_BODY_MAX_LEN=256

Local Jaeger

Use the provided compose file to start Jaeger locally: deploy/docker/jaeger/docker-compose.yml
Command: docker compose -f deploy/docker/jaeger/docker-compose.yml up
Jaeger UI: http://localhost:16686

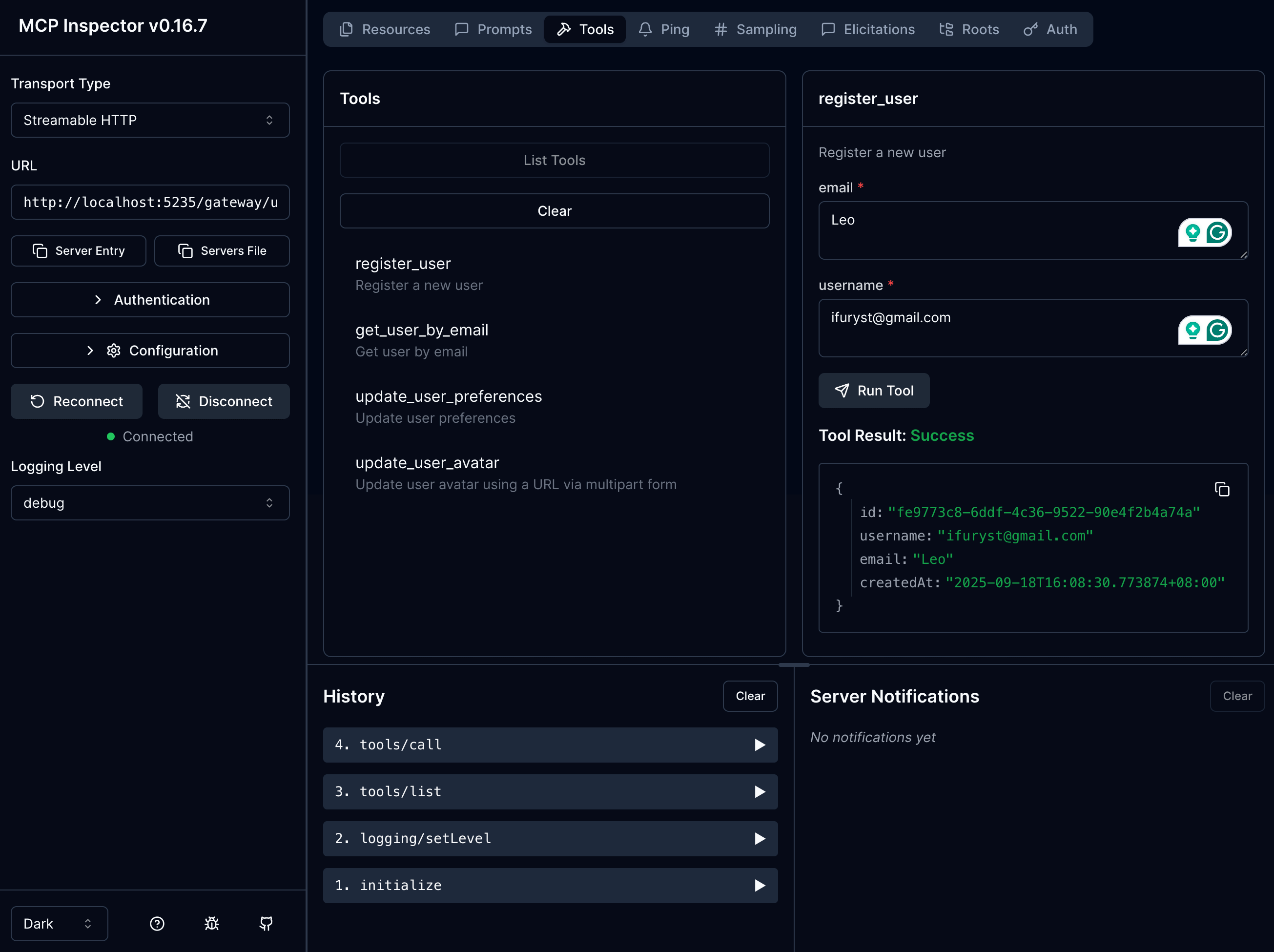

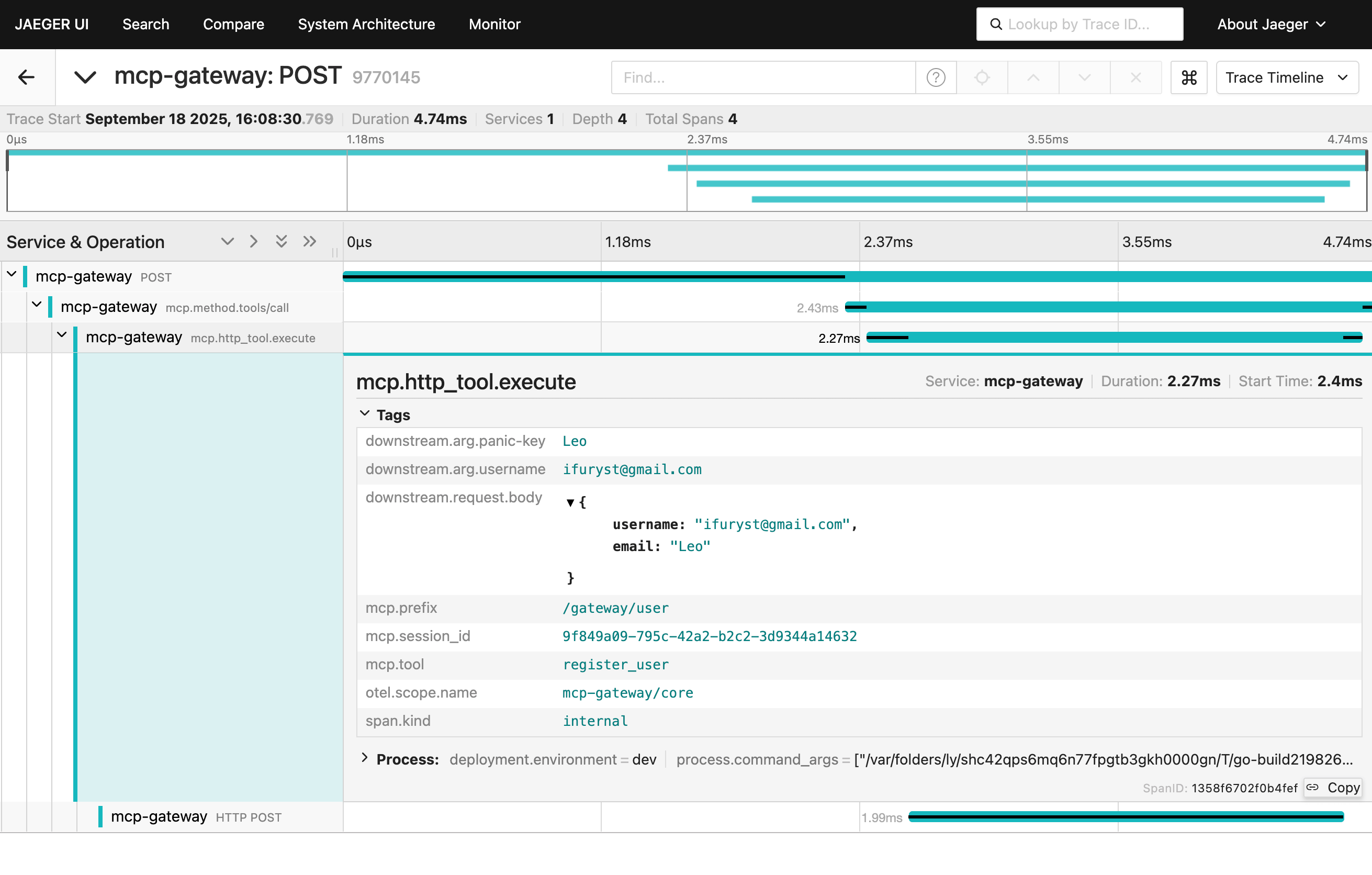

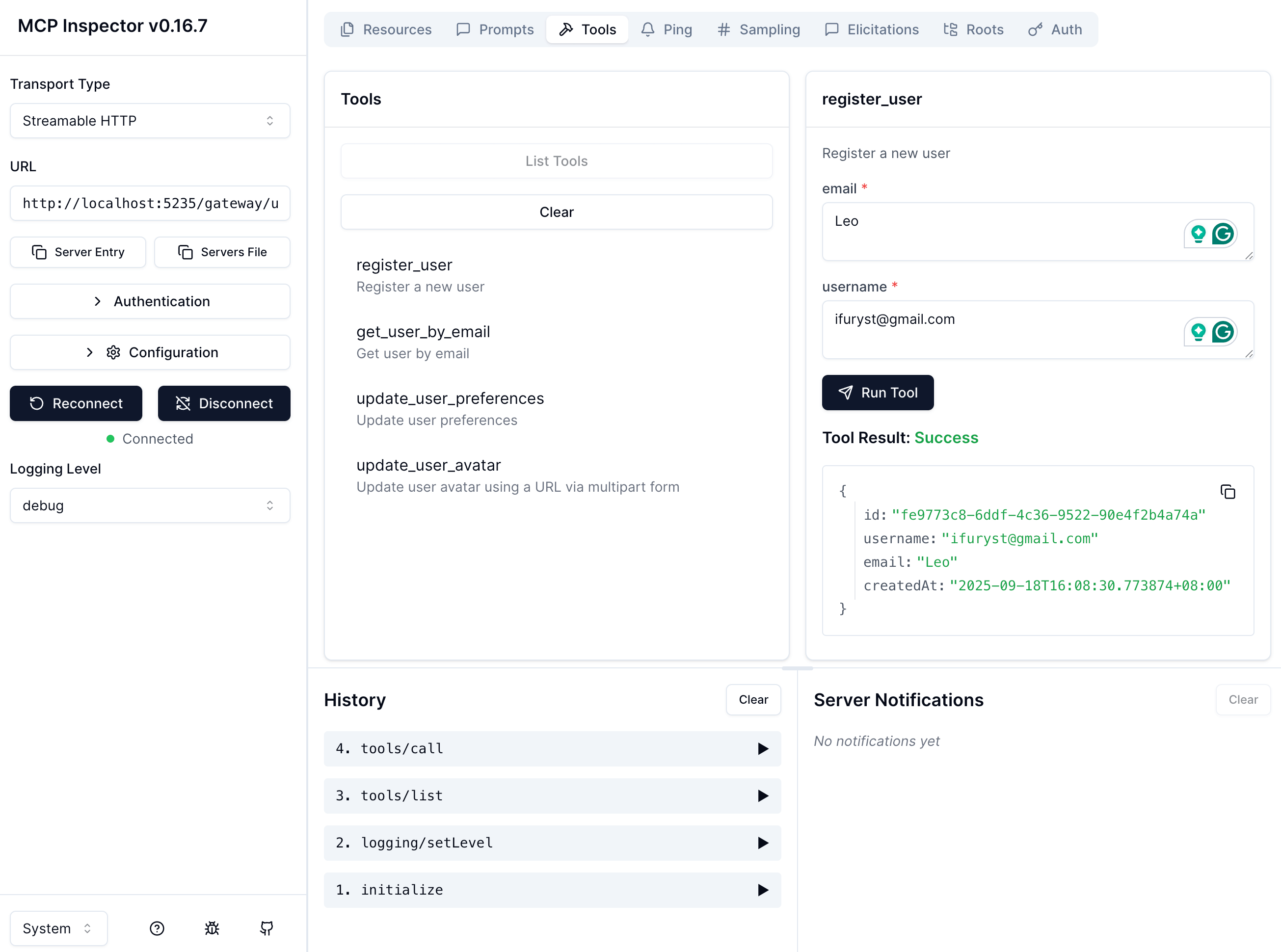

Screenshots

Capturing request fields or bodies can expose sensitive data (tokens, passwords, PII). Keep disabled by default, use minimal sampling and narrow field selection in controlled environments.

Configuration File Location

By default, configuration files should be placed in the following locations:

Container deployment: /app/configs/mcp-gateway.yaml
Binary deployment: ./configs/mcp-gateway.yaml

Hot Reload Mechanism

MCP Gateway supports hot reload configuration, allowing new configurations to be applied without restarting the service:

Configuration Update Detection

When configuration changes occur, reload is triggered through configured notification methods (signal, api, redis)

Configuration Validation

Before reloading, the validity of the new configuration is verified to ensure stable service operation

Smooth Transition

After validation passes, smoothly switch to the new configuration without interrupting ongoing connections

Best Practices

Single Machine Deployment

Recommended storage type: db with SQLite
Notification type: composite or signal
Session storage: memory or redis

Cluster Deployment

Storage type: db with PostgreSQL or MySQL
Notification type: redis or composite
Session storage: recommended redis

Production Environment

Use strong passwords to protect Redis and database
Regularly backup configuration data
Monitor service health status and performance metrics

Getting Started

Deployment

Configuration

Web Configuration

Client Usage

Development

API Documentation

Endpoint Examples

​Basic Configuration

​Storage Configuration

db storage

api storage

​Configuration Example

​Notification Configuration

​Supported Notification Methods

signal

api

redis

composite

​Notification Role Description

​Configuration Example

​Session Storage Configuration

memory storage

redis storage

​Configuration Example

​Forward Headers Configuration

​Features

Header Filtering

Client Headers

Argument Headers

Override Control

​Configuration Options

​Header Filtering Logic

​Usage Examples

​Example 1: Allow Only Specific Headers

​Example 2: Block Specific Headers

​Example 3: Tool Argument Headers

​Environment Variables

​Tracing (OpenTelemetry → Jaeger)

​What You Get

​Configuration

​Environment Variables

​Local Jaeger

​Screenshots

​Configuration File Location

​Hot Reload Mechanism

​Best Practices

Basic Configuration

Storage Configuration

Configuration Example

Notification Configuration

Supported Notification Methods

Notification Role Description

Configuration Example

Session Storage Configuration

Configuration Example

Forward Headers Configuration

Features

Configuration Options

Header Filtering Logic

Usage Examples

Example 1: Allow Only Specific Headers

Example 2: Block Specific Headers

Example 3: Tool Argument Headers

Environment Variables

Tracing (OpenTelemetry → Jaeger)

What You Get

Configuration

Environment Variables

Local Jaeger

Screenshots

Configuration File Location

Hot Reload Mechanism

Best Practices
